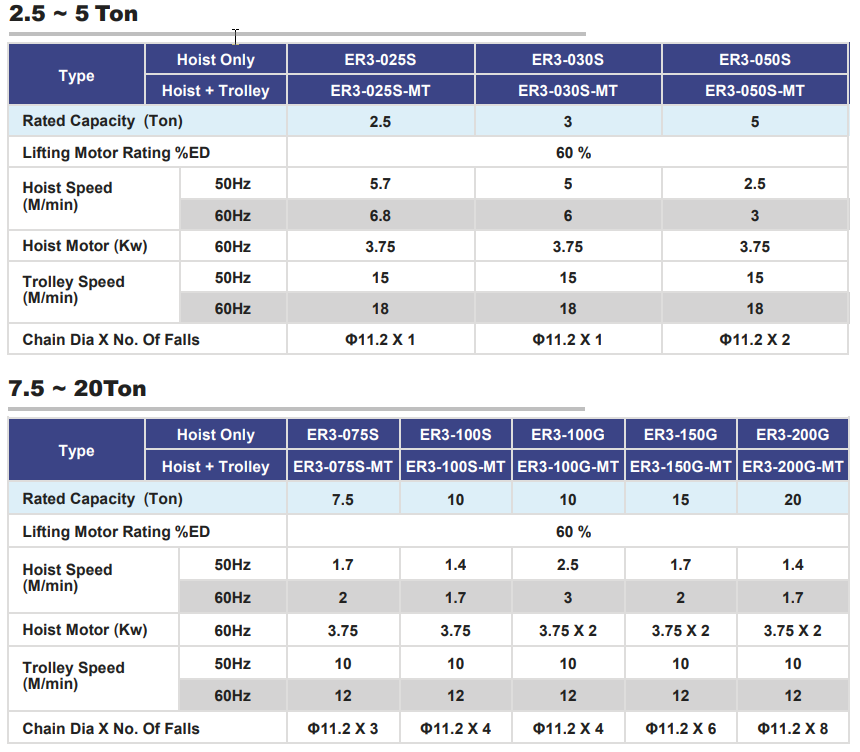

Load capacity 2.5 tons to 20 tons, single speed

Provides smoother, more stable operation and reduces swaying when lifting heavy loads!

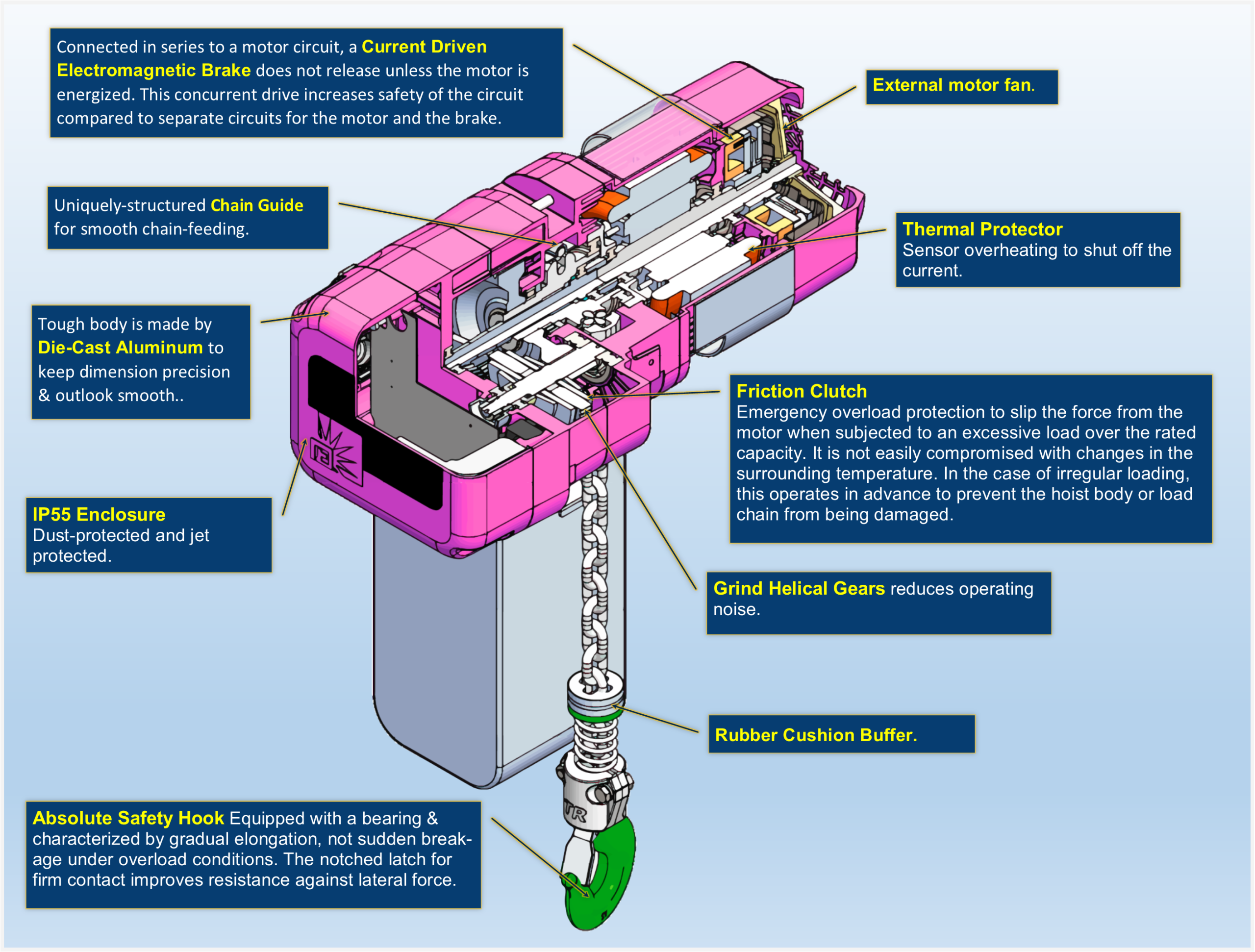

A "dual safety mechanism" is employed to ensure operational safety!

Motor overheat protection – In case of motor overheating, it will only perform the load lowering function, ensuring the motor does not burn out and increasing the life of coils and bearings.
The reverse detector is designed to prevent the danger of reverse operation caused by incorrect power connection.
All-aluminum alloy body – Using die casting technology, it is lightweight, structurally robust, and dissipates heat quickly.
IP55 rating – The body is designed to be dustproof and water-resistant.
High-strength forged lifting hooks – safety factor > 5It features a safety locking slot design.
Load limiter – Also known as a safety clutch or wet clutch, it is located between the driving and driven sides of the power transmission and is kept oil-immersed. When an overload fault occurs (torque exceeds the set value), the torque limiter will disengage, thereby effectively protecting the drive machinery.
Power failure safety brake – The brake and motor power supply are connected in series, so the brake cannot be released if the motor fails, ensuring safety.
External fan for motor – External motor fan – The brake surface is isolated from the motor and equipped with a fan that blows heat onto the fins, reducing heat buildup, improving motor performance, and extending the life of the coils and bearings.
Sprocket – The five-eye design increases chain life and makes lifting smoother and quieter.
The chain guide, chain rollers, limit devices, etc. can be directly disassembled from the bottom of the main unit, making maintenance and repair easy.
Limit switches – If the load is raised or lowered excessively, the limit switch will automatically stop to prevent damage to the crane or chain.
Adjustable stop – Ensure that the hook is not damaged by impact when it reaches its limit position.
Clutch adjustment method: The transmission torque can be limited by adjusting the nut.
