Load capacity 2 tons to 7.5 tons, 5Hp single speed

The hoisting speed is stable and fast, improving work efficiency.

The use of a dual braking system, combining electromagnetic and mechanical components, makes braking more accurate and safer.

   Feature

• The lifting speed is smooth and fast, increasing production efficiency and saving you resources and costs.
• The specially designed crane motor achieves greater crane torque and higher efficiency, and can withstand long-term, high-frequency use.
• The reverse detector is designed to prevent the danger of reverse operation caused by incorrect power connection.
• The limit switch design allows the hook to automatically stop when it reaches its upper or lower limits, protecting your safety.
• The push-button switch is equipped with an insulated, waterproof design and offers excellent tactile feedback.
• The hook head can rotate freely 360 degrees, allowing you to easily adjust the angle at which you place your goods.

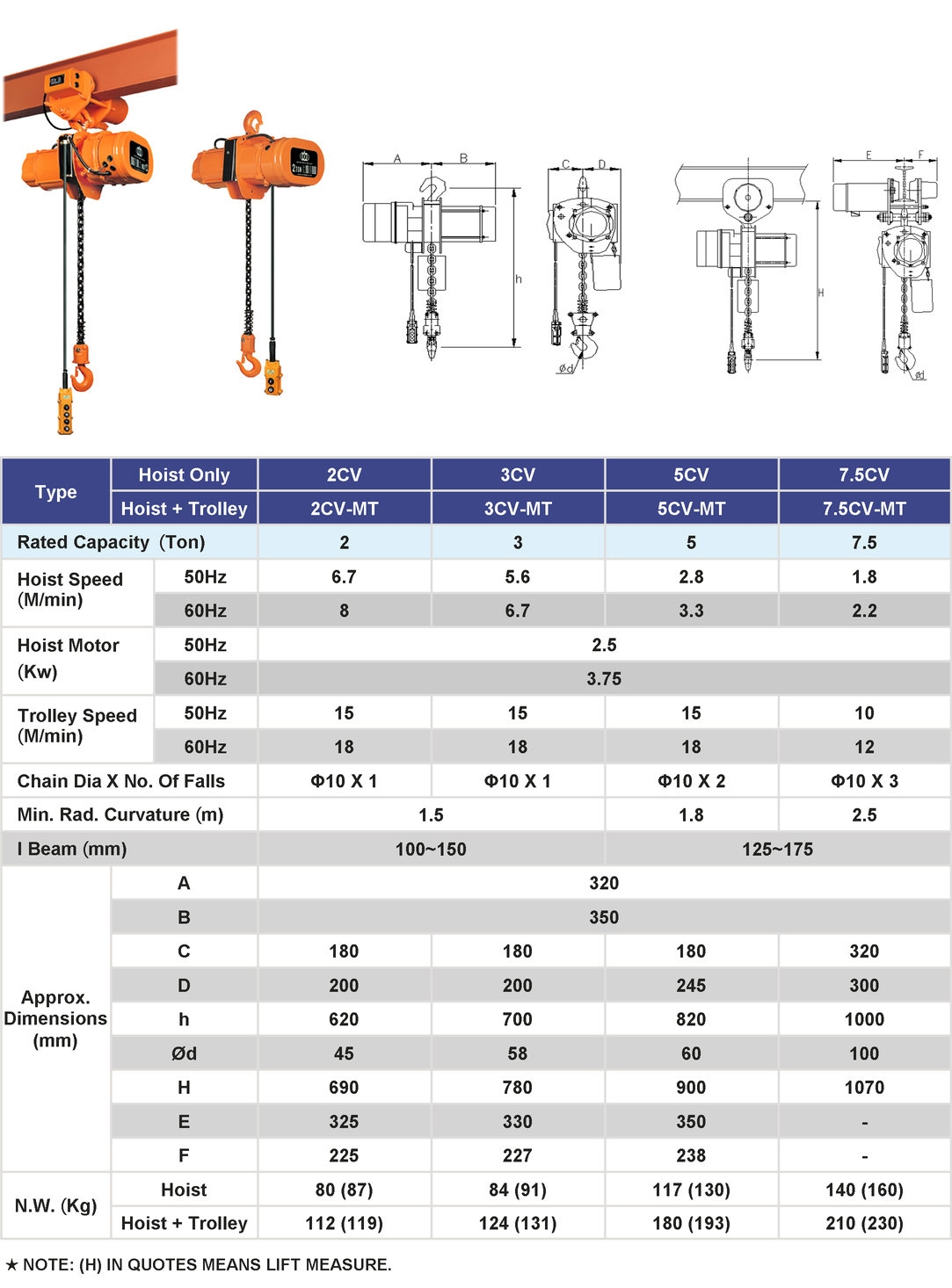

CV-MT Monorail Heavy-Duty Electric Chain Crane

• The transverse motor is equipped with a high-braking brake to ensure smooth start-up and stopping.
• The main unit and the horizontal trolley feature an ultra-thin design, maximizing the height of the horizontal track and increasing the lifting distance and hoisting height.
• The transmission gears undergo grinding, heat treatment, and backlash machining to ensure quiet operation.
• The design of the lateral vehicle minimizes the number of components and facilitates easy assembly, saving time and preventing errors.
• A variety of different suspension designs are available, allowing for customized designs to suit various locations.

Control method: Suspension-type push-button switch

Power requirements: 3-phase 220/380/415/440/460V 50/60Hz
