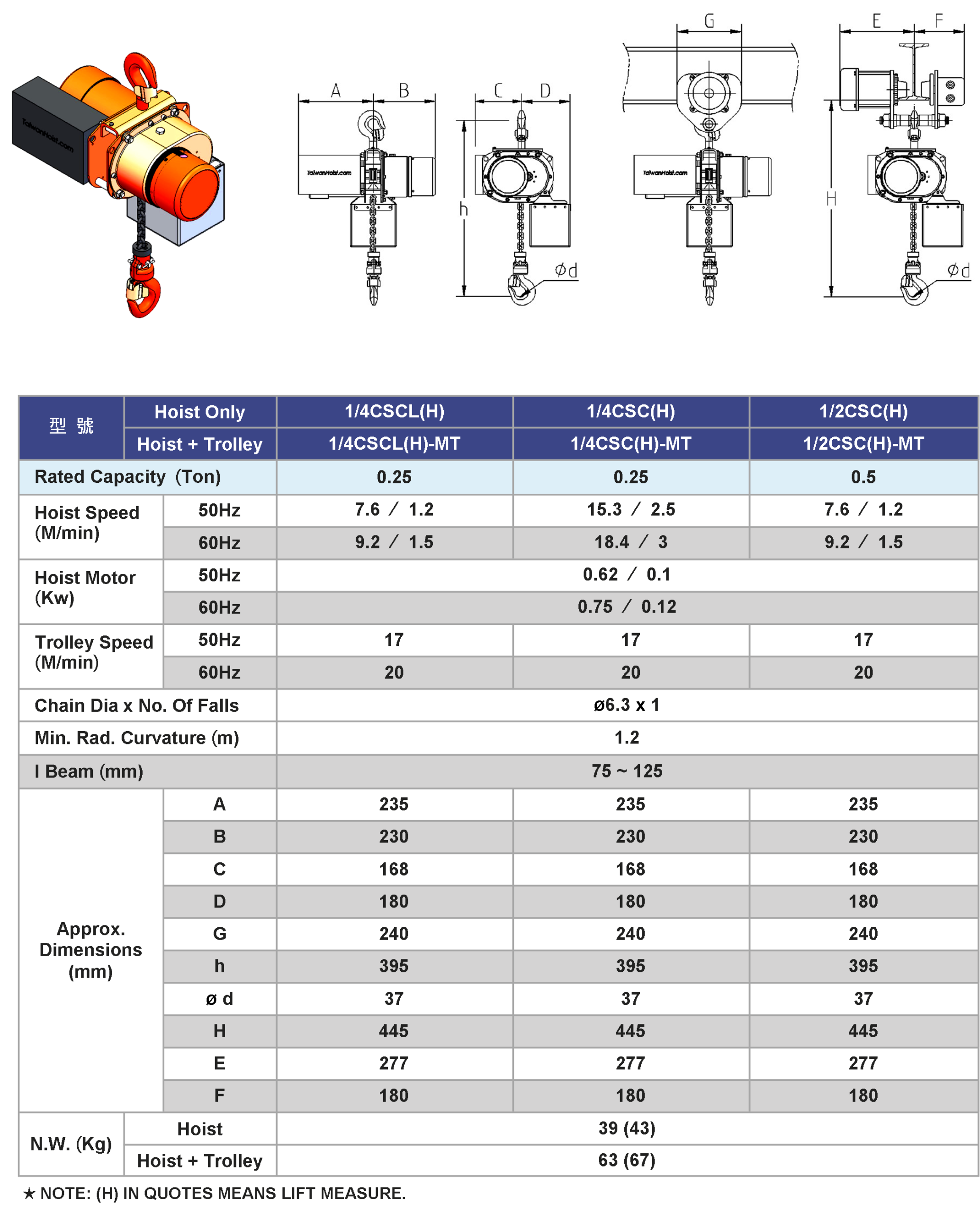

Load capacity 250Kg~500Kg, 1Hp dual-speed variable pole system

Provides precise positioning for different needs.

Shortest fuselage structureChain-driven electric cranes are suitable for various small factory spaces.

 Features

• In cooperation with foreign technology, we use ultra-strong, durable alloy steel chains, with a safety factor of over 60%.
• The specially designed clutch can automatically idle and stop lifting when overloaded or exceeding the upper or lower limits.
• The powerful disc brake system makes operation more convenient for users while working.
• The lightweight design makes installation easy.

Monorail electric trolley

• The transverse motor is equipped with a high-braking brake to ensure smooth start-up and stopping.
• The drilling and milling processes for both the main machine and the traversing carriage are performed on large-scale precision special-purpose machines, ensuring the machine's high precision and stability.
• The main unit and the horizontal trolley feature an ultra-thin design, maximizing the height of the horizontal track and increasing the lifting distance and hoisting height.
• The smooth start of the horizontal motor minimizes swaying of the heavy object being protected during lifting and movement.
• The design of the lateral vehicle minimizes the number of components and facilitates easy assembly, saving time and preventing errors.
• The design of the horizontal motor and the arc-shaped triangular plate makes the installation site more aesthetically pleasing.
• Friction torque limiters, also known as safety clutches, are installed between the driving and driven sides of a power transmission system. Gears are clamped between spring-loaded friction surfaces. The spring force can be adjusted with a nut to limit the magnitude of the transmitted torque. When an overload torque exceeds the set value, the torque limiter will disengage, effectively protecting the drive machinery and the load, thus preventing overload lifting and over-winding.

Control method: Suspension-type push-button switch

Power requirements:
3-phase 220/380/415/440/460V 50/60Hz
