Load capacity 500kg~5 tons

CS-LT , CF-LT , CFC-LTC , ER3-LT , ER3-LTV

SANYUAN-icon-Download

It is particularly suitable for design in spaces with low ceilings, and features an integrated fuselage structure.

The electric chain crane and trolley are integrated into a single structure, making it particularly suitable for spaces with low ceilings.

Features

  • Using a low-lift monorail electric chain crane allows for a greater operating height.
  • Shorten the minimum distance from the steel section to the hook position.
  • We offer the most economical solutions among similar products.
  • Rated load: 150KG~2 tons
  • Lightweight and easy to install.
  • The upper and lower limit switches do not affect the dead clearance and are easy to install.
  • It can be compatible with voltages and frequencies in various countries.
  • When the load exceeds the rated load or the hook touches the over-winch position, the mechanical overload protection device will automatically activate, disengaging the motor power from the gears to ensure safety.
  • Braking torque > 125% of motor rated torque.
  • The high-speed end uses helical gears that have undergone heat treatment and tooth surface grinding, resulting in quiet and stable operation.
  • The lower hook is heat-treated, has a safety catch, and can rotate 360 ​​degrees.
  • Safety multiple for hooks, drive gears, and chains > 5.
  • A waterproof mechanical interlocking suspension buckle switch is used.

Friction-type torque limiters, also known as safety clutches, are installed between the driving and driven sides of a power transmission system. Gears are clamped between a spring-loaded compound friction surface. The spring force can be adjusted using a nut to limit the transmitted torque. When an overload torque exceeds the set value, the torque limiter will disengage, effectively protecting the drive machinery and the load, thus preventing overload lifting and over-winding.

Control method: Suspended push-button switch

Power requirements: 3-phase 220/380/415/440/460V 50/60Hz

Download External dimensions drawing

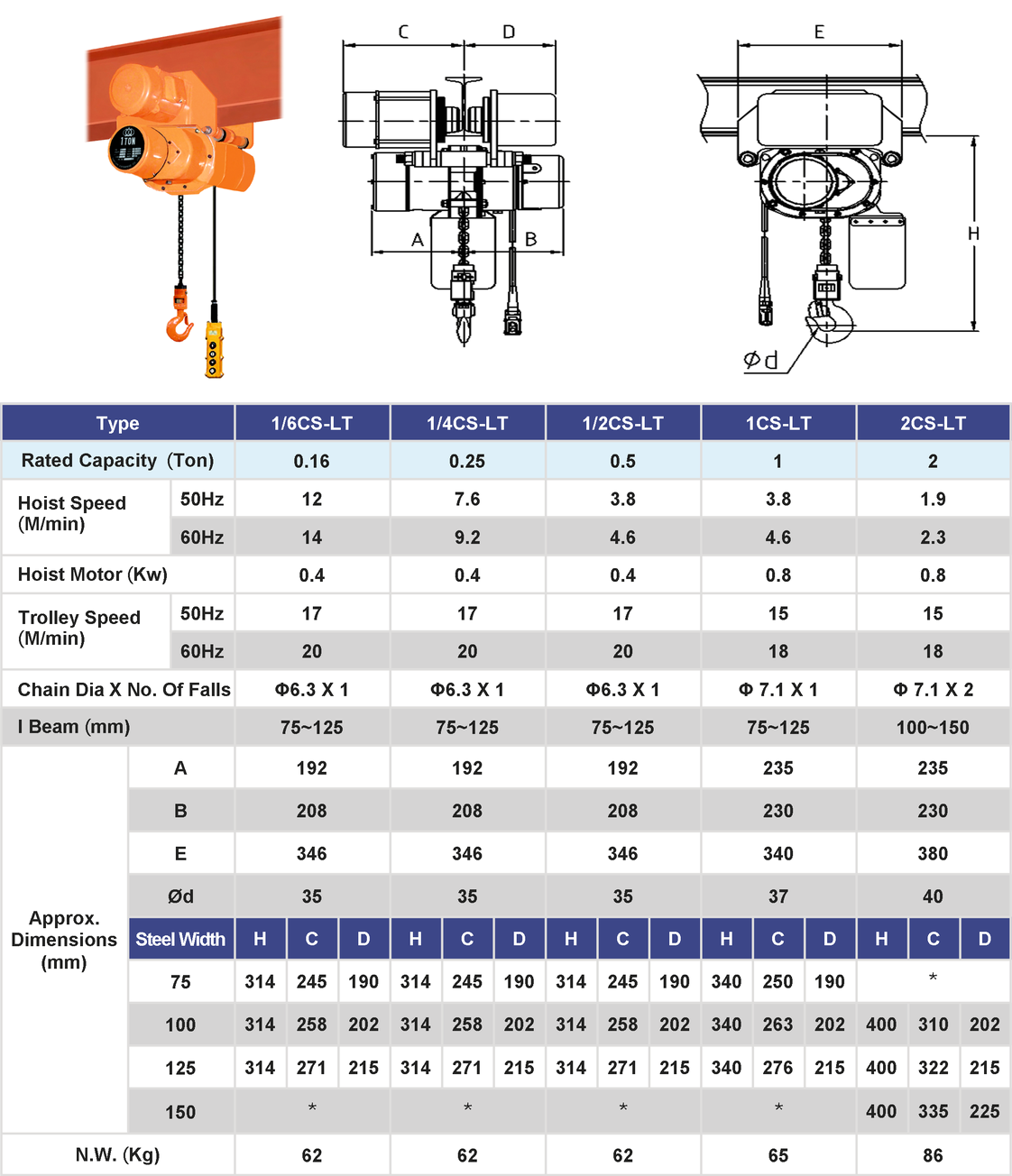

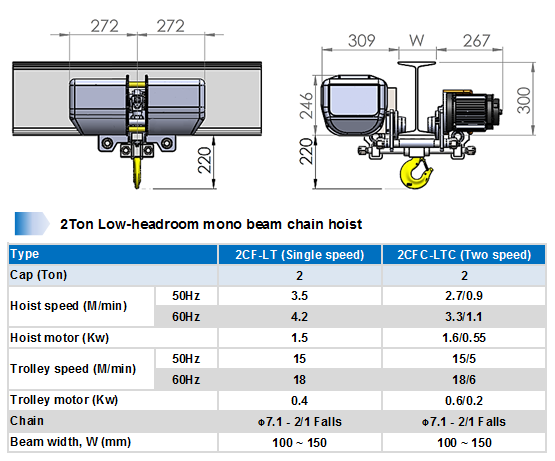

► 2-ton low-lift electric chain crane (single speed) – Outline dimensions 2CF-LT

► 2-ton low-lift electric chain crane (dual-speed) - Outline dimensions 2CFC-LTC

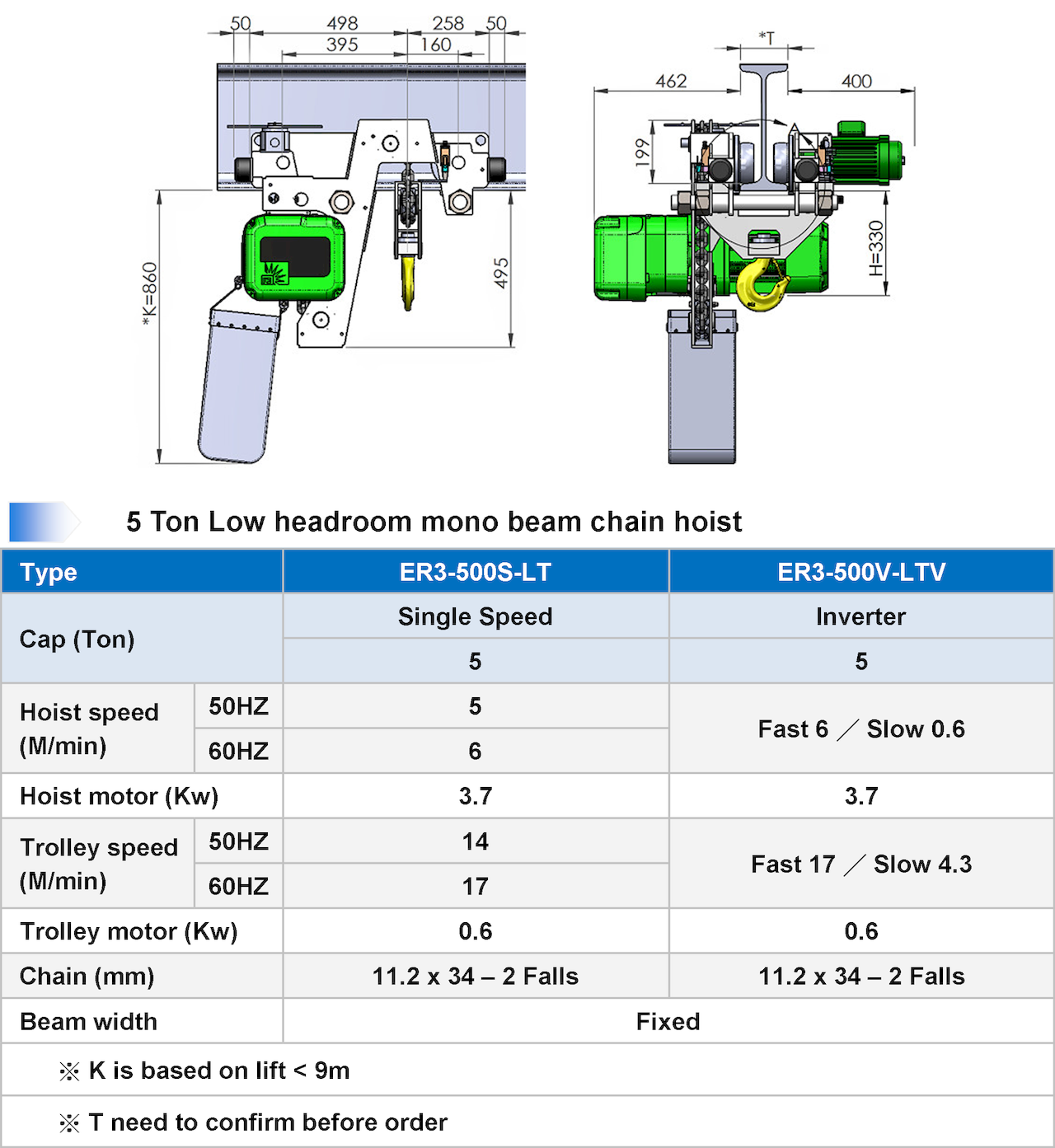

► 5-ton low-lift electric chain crane (single speed) outline drawing ER3-500S-LT

► 5-ton low-lift electric chain crane (frequency converter) outline dimensions ER3-500V-LTV
