Load 2~5 tons, 2.5Hp single speed

SANYUAN-icon-Download

The combined safety mechanism of the double limit switch ensures safe use!

 Features

  • The aesthetically pleasing and streamlined design makes your machinery more user-friendly.
  • The spiral and parallel teeth are made of high-grade, strong steel, and undergo multiple processing steps including indexing and heat treatment, freeing you from noise pollution.
  • The reverse detector is designed to prevent the danger of reverse operation caused by incorrect power connection.
  • The combination of dual limit switches ensures automatic stopping if the hook exceeds its upper or lower limits during operation, protecting your safety.
  • The specially designed AC electromagnetic braking system automatically adjusts the brake clearance, ensuring your crane is always in optimal condition.
  • The operating voltage can be adjusted according to the factory voltage, and is equipped with low-voltage control at 24 volts or 48 volts.

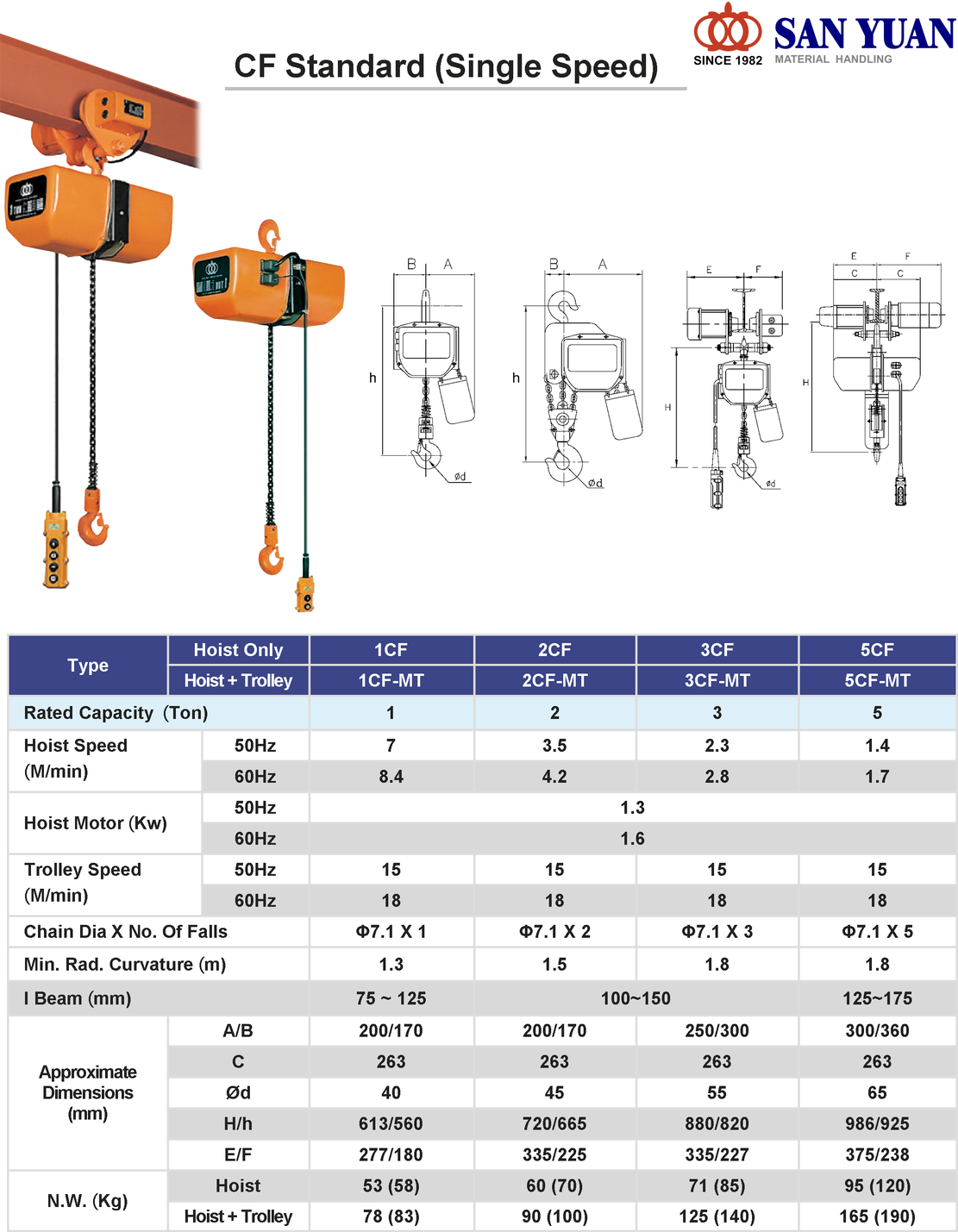

CF-MT Monorail Standard Electric Chain Crane

  • The transverse motor is equipped with brakes to ensure smooth start-up and stopping.
  • The drilling and milling processes for both the main machine and the traversing carriage are performed on large-scale precision special-purpose machines, ensuring the machine's high precision and stability.
  • The main unit and the horizontal trolley feature an ultra-thin design, maximizing the height of the horizontal track and increasing the lifting distance and hoisting height.
  • The smooth start of the traverse motor minimizes swaying of the heavy object being protected during lifting and movement.
  • The design of the lateral vehicle minimizes the number of components and facilitates easy assembly, saving time and preventing errors.
  • The design of the horizontal motor and the arc-shaped triangular plate makes the installation site more aesthetically pleasing.

Control method: Suspension-type push-button switch

Power requirements:

3-phase 220/380/415/440/460V 50/60Hz
