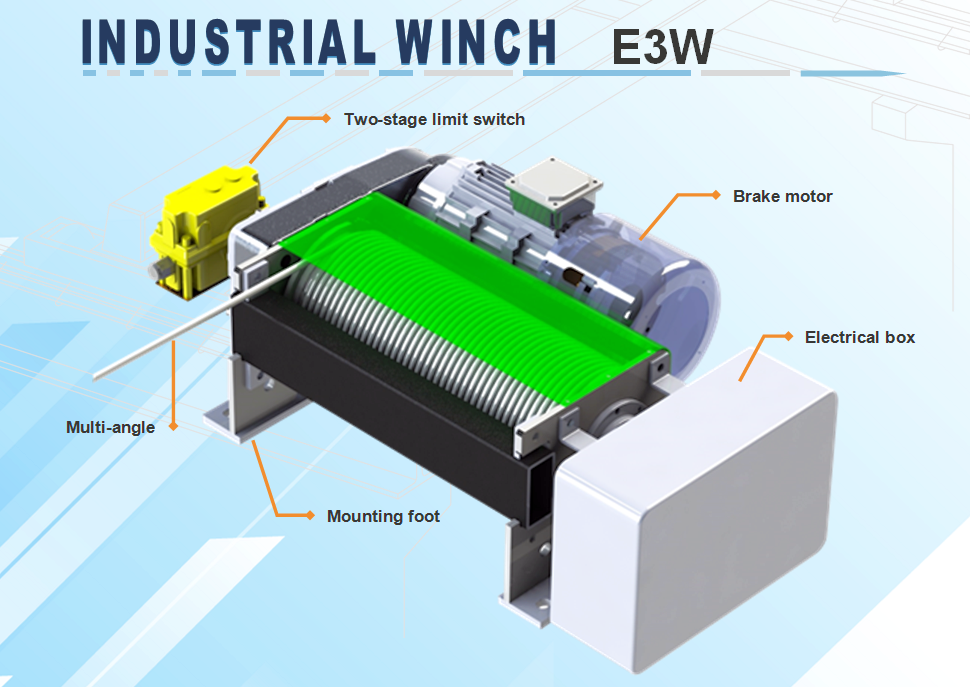

Lifting winch E Type ( E3W )

• The cable groove is processed on the drum to facilitate the regular winding of the steel cable.
• High starting torque motor with advantages of low starting current and high temperature resistance.
• With a safety factor greater than 5, the steel cable is particularly suitable for well drilling, cranes, hoists, and construction.
• Safety power-off braking device – The brakes activate immediately upon power failure, ensuring safety. Braking torque is at least 1.5 times the rated value.
• The oil bath gearbox is equipped with a grinding gear set, which is quiet and has a long service life.
• Limit switches are available as an option.

Control method: Suspension-type push-button switch

Power requirements:
3-phase 220/380/415/440/460V 50/60Hz
